Amflow
PR Carbon

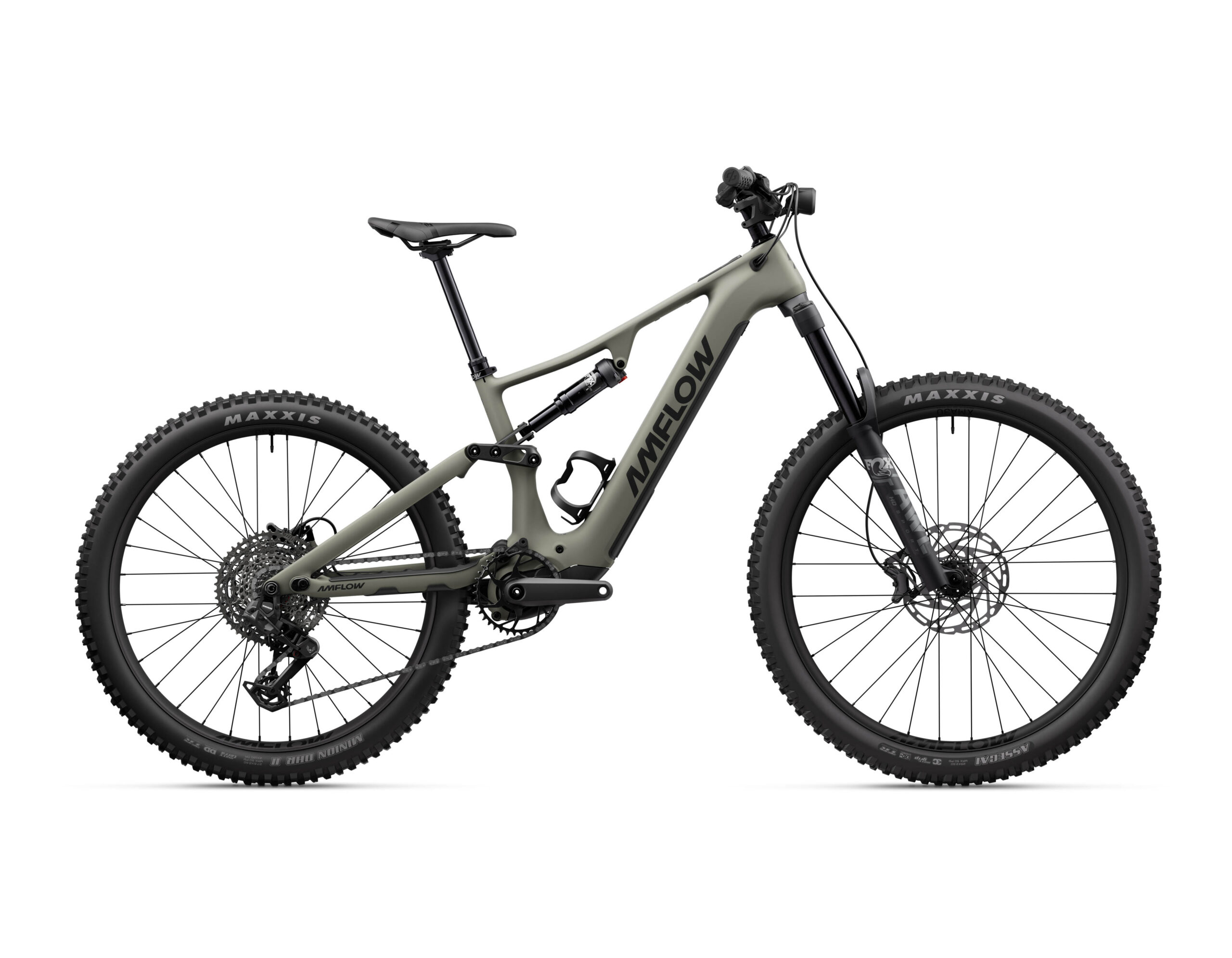

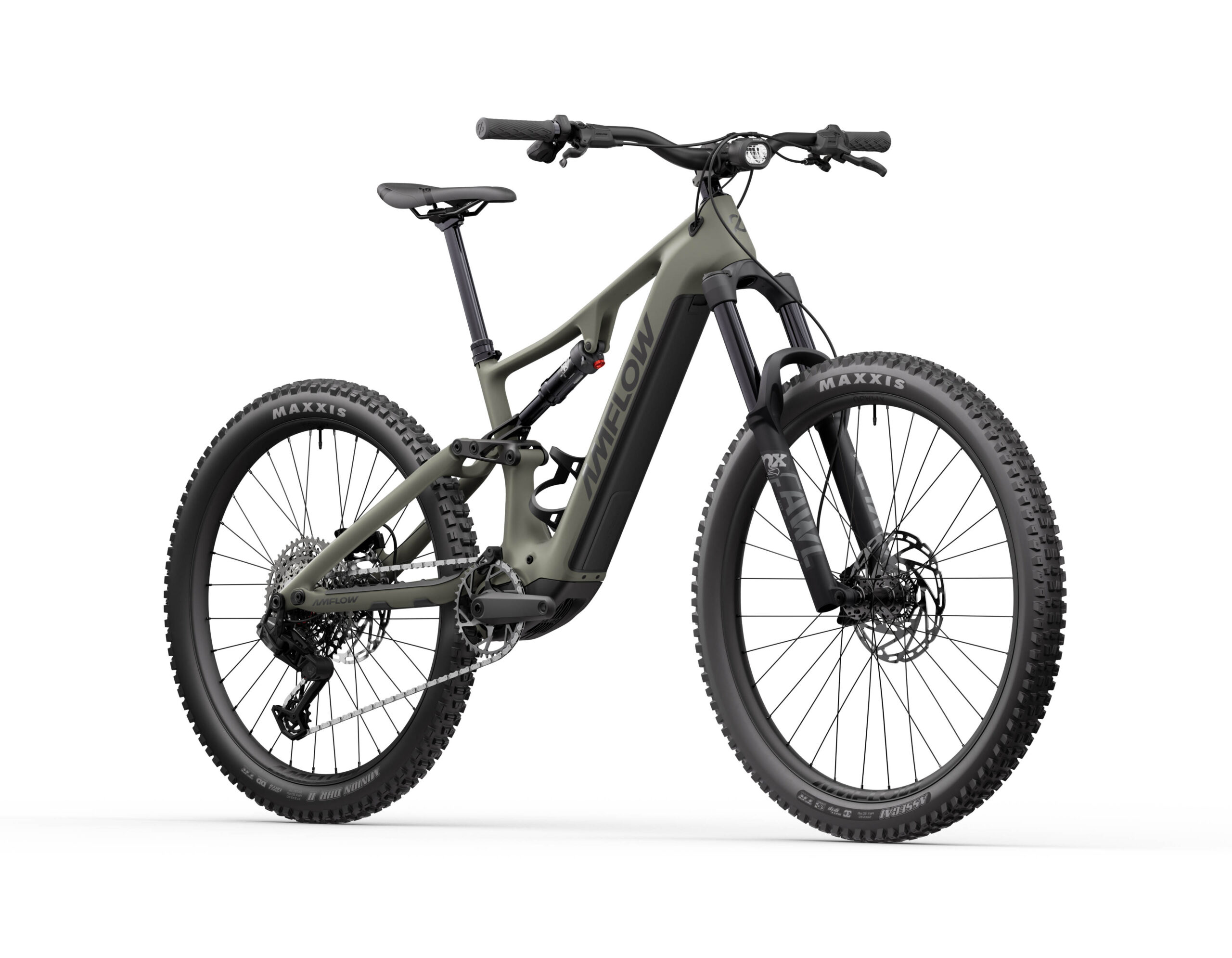

The Amflow PR Carbon combines a full-carbon frame, 800Wh removable battery and 125Nm Avinox M2 motor with 160mm FOX suspension and SRAM electronic shifting.
Power comes from the Avinox M2 drive unit, producing 110Nm nominal torque and up to 125Nm at peak assistance. That’s paired with the large removable battery, giving riders both substantial capacity and the option of taking the battery inside to charge or swapping batteries for longer adventures.
A powerful, long-range eMTB with plenty of scope to tune the bike to your riding style.
| Battery | 800wh removable |
|---|---|
| eBike System | Avinox M2 Drive Unit – 110Nm nominal / 125Nm peak |
| Brakes | Tektro TKD173 hydraulic disc, 4-piston |
| Display | Avinox DPC100 2-inch OLED Control Display |
| Year | |
| Colours | Moss Green |
| Gears | SRAM S1000 Eagle Transmission electronic derailleur |
| Chain | Chain |
| Gear Type | Derailleur |
| Sizes | XXL, M, L, XL |
| Fork | FOX AWL HD Sport, 160mm |
| Rear Shock | FOX Float Rhythm |
| Dropper Post | 190mm M; 210mm L/XL; 230mm XXL |
The PR Carbon is the more accessible version of Amflow’s long-range PR platform, sharing the same full-carbon chassis, 800Wh removable battery and adjustable geometry as the PR Carbon Pro.
Power comes from the Avinox M2 drive unit, producing 110Nm nominal torque and up to 125Nm at peak assistance. That’s paired with the large removable battery, giving riders both substantial capacity and the option of taking the battery inside to charge or swapping batteries for longer adventures.
The suspension package combines a 160mm FOX AWL HD Sport fork with a FOX Float Rhythm rear shock. SRAM’s electronic S1000 Eagle Transmission provides a wide 10–52T gearing range, with Tektro four-piston brakes and 203mm rotors handling braking.
The PR’s carbon chassis also provides much more adjustment than the average eMTB. Head angle, bottom bracket height and chainstay length can all be changed, with up to 40 geometry combinations available. It can also accommodate either a 27.5″ or 29″ rear wheel.
