Amflow
PX Carbon

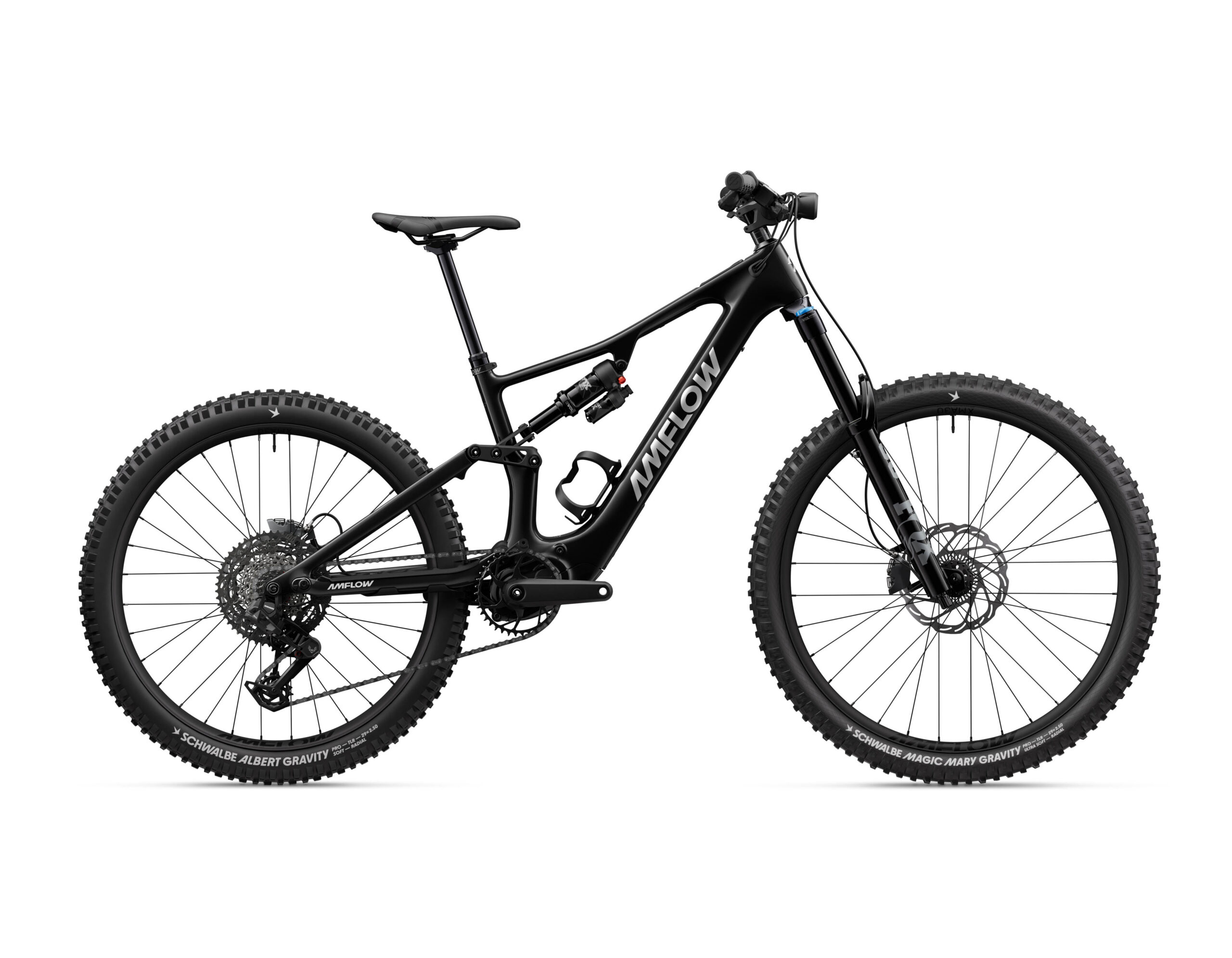

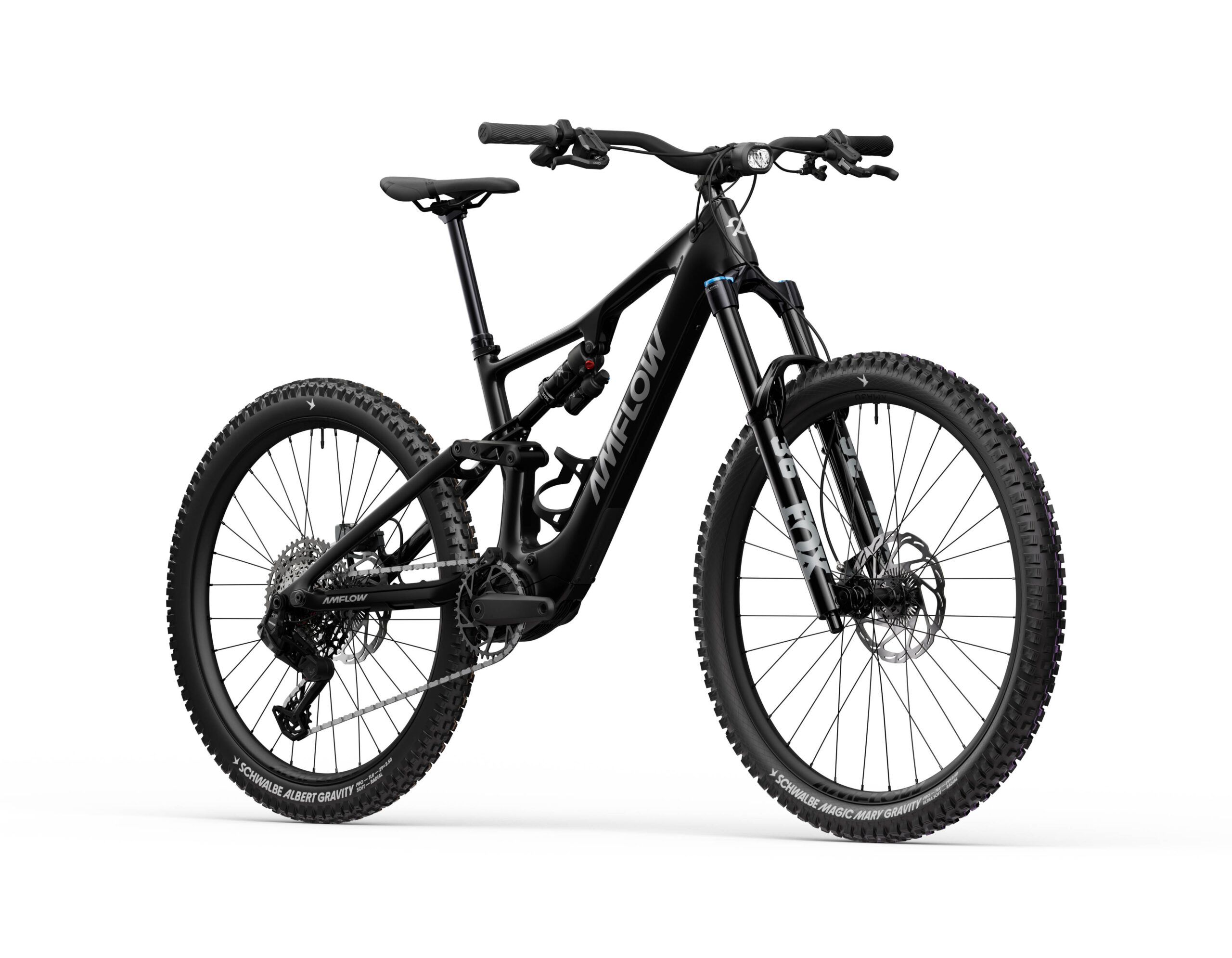

The Amflow PX Carbon gives you the core performance of the flagship PX platform without stepping all the way up to the Pro component package.
The PX Carbon delivers the same 150Nm Avinox M2S motor, 700Wh battery and highly adjustable carbon chassis as the PX Carbon Pro, with FOX Performance suspension, SRAM S1000 Transmission and a tough alloy wheelset.
| Battery | 700Wh integrated |
|---|---|
| eBike System | Avinox M2S – 130Nm nominal / 150Nm peak |
| Brakes | Magura Gustav Pro hydraulic disc, 4-piston |
| Display | Avinox DPC100 2-inch OLED Control Display |
| Year | |
| Colours | Phantom Black |
| Gears | SRAM S1000 Eagle Transmission electronic derailleur |
| Chain | Chain |
| Gear Type | Derailleur |
| Sizes | XXL, M, L, XL |
| Fork | FOX 36 Performance, 160mm |
| Rear Shock | FOX Float X Performance |
| Dropper Post | 190mm M; 210mm L/XL; 230mm XXL |
The Amflow PX Carbon gives you the core performance of the flagship PX platform without stepping all the way up to the Pro component package.
At its centre is the Avinox M2S drive unit, with 130Nm nominal torque and up to 150Nm at peak assistance. The motor is paired with a slim 700Wh integrated battery and Amflow’s 2-inch OLED control display, wireless controllers and fast charging system. Amflow
A full-carbon frame keeps weight down and uses the same extensively adjustable geometry as the Pro. Five head-angle settings, two bottom-bracket positions and four chainstay positions allow up to 40 possible geometry configurations. The rear of the bike can also be configured around either a 27.5″ or 29″ wheel.
FOX 36 Performance 160mm suspension and a Float X Performance rear shock provide plenty of support for harder trail riding, while SRAM’s electronic S1000 Eagle Transmission offers a wide 10–52T range. Magura Gustav Pro four-piston brakes and 203mm rotors are carried across from the Pro model.
